Small‑Size Durable 150 Model Dual‑Shaft Shredder

Our industrial shredders feature heavy‑duty frame and durable cutting blades, reducing material volume through shearing, tearing and extrusion. Suitable for plastics, rubber, wood, metal scraps, e‑waste and various industrial solid waste. Equipped with intelligent overload protection system for stable operation and easy maintenance. Different models are available to match your requirements on throughput, feed size and output particle size, widely used in waste recycling and material reprocessing to deliver reliable size‑reduction solutions.

Inquire Now Contact Us

Detailed Description


Motor	3kw*1 (Also have 5.5kw motor)
Voltage	Customizable
Reducer	K77*1
Main shaft	85560mm2
Blade size	18010mm15 (Thickness can be customized)
Blade material	Alloy tool steel
Shredder box	150*350mm
Dimension	8305001450mm

This compact 150 model shredder is ideal for laboratory test, small‑batch material shredding and sample preparation. It works well for plastics, rubber scraps, circuit boards, lithium‑ion batteries and light‑duty waste. Perfect for research institutions, small workshops and pilot‑scale waste pretreatment. Not suitable for heavy thick metal blocks.

accessories

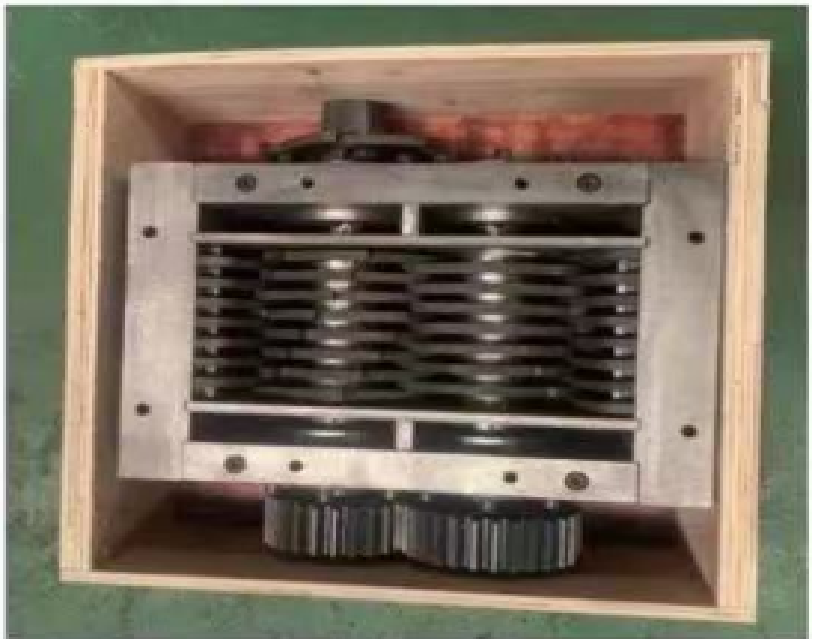

The shredder chamber is the core working unit, available in mini, small, medium and large sizes. Fabricated from thick welded steel plates, it is fitted with bearing housings to support cutter shafts. Removable side panels simplify maintenance and knife replacement. Equipped internally with cutter shafts, moving blades, spacers and fixed blades, it shreds materials through intermeshing shear and tearing, with shredded output discharged from the bottom. Compact versions support bench‑mount installation, while medium‑ and heavy‑duty models feature enhanced structural strength for plastics, wood, metal, solid waste and more. Blade thickness and chamber dimensions define final particle size. Heavy‑duty chambers withstand higher impact loads and require drive systems with matching torque.

For shredders, Shanghai Huyuan motors are the preferred supporting power unit. Fully engineered for the harsh operating conditions of shredding equipment, they deliver excellent shock‑resistance and overload capacity, maintaining stable performance under material jams and frequent forward‑reverse rotation. Featuring a thickened cast‑iron housing and heat‑resistant internal windings, the motors run reliably in heavy‑dust environments. Available in standard high‑efficiency and variable‑frequency models to match diverse electric control systems. The VFD‑compatible version supports automatic reverse protection against material jams. Built to national standard mounting dimensions, it uses widely‑available spare parts for easy maintenance, providing consistent and dependable power for shredding machines.

This shredder is equipped with Shanghai Huyuan K-series hard-tooth reducers, specially designed for heavy-duty and impact shredding working conditions. With carburized and quenched gears, the reducer features outstanding impact and overload resistance, capable of withstanding instantaneous torque shocks caused by material jams and supporting frequent forward and reverse operation. Adopting a high-strength cast iron housing with superior sealing performance, it operates stably in dusty environments with high transmission efficiency and low noise. Perfectly matched with the supporting motor, it provides low-speed and high shear torque required by the cutter roller. The standardized modular structure ensures strong part universality and easy disassembly and maintenance, effectively ensuring stable shredder operation and extending equipment service life.
